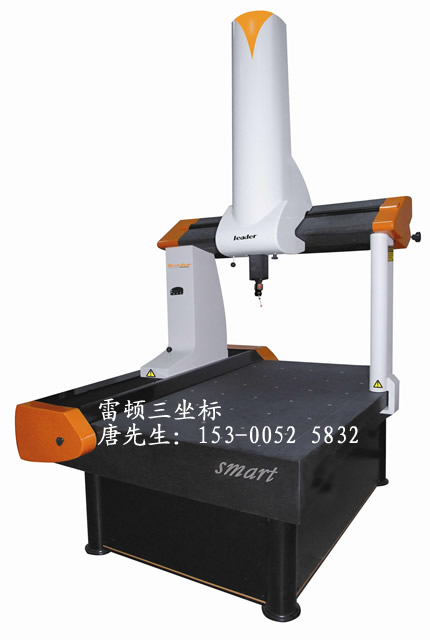

Smart Series CMM |
Click the picture |
TIE IN PRECISION. FACILITY. ECONOMY
·Good stability with granite triangle beam design.
·Using dovetail guide way on Y axis,efficiently eliminate the moving
z pendulum.
·Using zero friction air bearing on all axes,promise moving of balance and zzaccuracy.
·All kinds of probes ready to choose.
·Easy to operate,software is easy to learn.
·Economic,good cost performance.
·Suit for measuring geometric dimension,relative position,form and
zzposition tolerance of all kinds of machinery parts,molds.
·Worktable has Roomy space,convenient to shelving and inspecting. |
 |

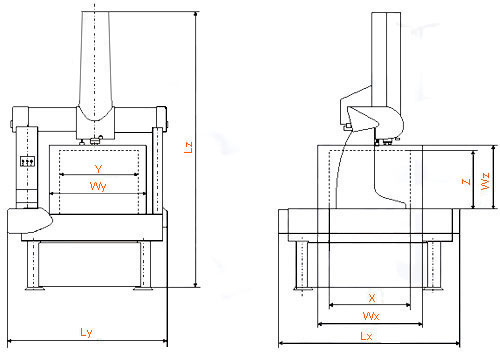

SPECIFICATIONS
MODEL |
Strokes(mm) |
Measuring Accuracy |
Overall Size(mm) |
Work Envelope(mm) |
| X×Y×Z |
MPEE (μm) |
MPEP (μm) |
Lx×Ly×Lz |
Wx×Wy×Wz |
NCM454 |
400×500×400 |
3.5+4.0L/1000 |
4.0 |
1200×1400×2250 |
600×700×500 |
NCM564 |
500×600×400 |
3.5+4.0L/1000 |
4.0 |
1300×1500×2250 |
700×800×500 |
NCM675 |
600×700×500 |
3.5+4.0L/1000 |
4.0 |
1400×1600×2450 |
800×900×660 |
Environment Specifications：
- Temperature Range：18 - 22℃
- Hourly Temperature Cycle：1℃/h - 2℃/24h
- Thermal Gradient：1℃/m
- Relative Humidity：55% - 65%
Air supply system：
- Air Pressure：0.4 - 0.5Mpa
- Air Supply：150NL/min
- Filter Accuracy：0.3μm
Electrical requirements：
- Power Voltage：220V/50Hz
- Power：1500VA
|
|
|
|
|
|
